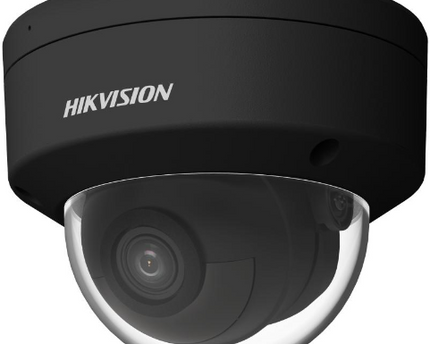

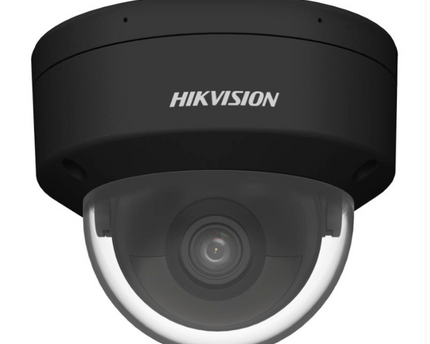

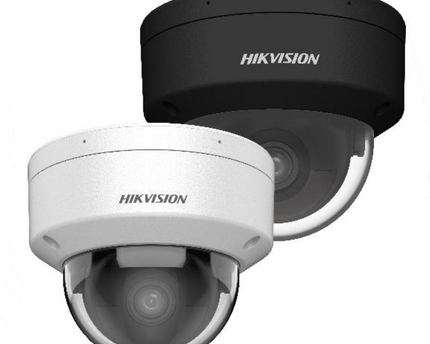

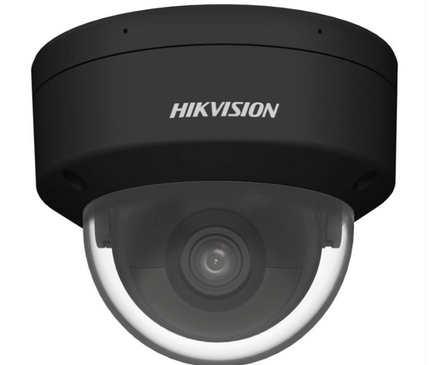

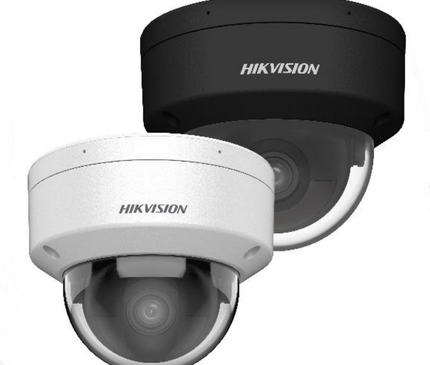

Hikvision DS-2CD2186G2H-ISU 2.8mm 8 MP DarkFighter AcuSense Dome Camera Black, PoE, Microphone

DS-2CD2186G2H-ISU 2.8mm 8 MP DarkFighter AcuSense Dome Camera Black, PoE, Microphone

By using advanced deep learning algorithms, Hikvision’s AcuSense technology introduces human and vehicle target classification alarms on both front-end and back-end devices. This system specifically focuses on the identification of human and vehicle targets, greatly improving the efficiency and effectiveness of alarms.

The DS-2CD2186G2H-ISU has a high quality camera with a resolution of 8 MP. Excellent low light performance with powered-by-DarkFighter technology. The DS-2CD2186G2H-ISU also has Clear image in strong backlight thanks to 120 dB True WDR technology.

The Hikvision DS-2CD2186G2H-ISU has a good focus on classification of human and vehicle targets. The Hikvision camera also has a microphone for real-time automatic protection (-SU).

The Hikvision DS-2CD2186G2H-ISU is water and dust resistant (IP67) and vandalism resistant (IK10).

Specifications:

Camera Features:

• Image Sensor : 1/1.8" Progressive Scan CMOS
• Max. Resolution : 3840 × 2160 (4K)
• Minimum Illumination : Color: 0.0008 Lux, Black/White: 0 Lux with IR
• Shutter speed : 1/3 s to 1/100,000 s
• Day & Night : IR filter
• Angle Adjustment : Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°


• Lens:


• Lens Type : Fixed Focal Length (choice between 2.8mm and 4mm)
• Focal Length & Field of View (FOV) :
  • 2.8mm: Horizontal FOV 105.1°, Vertical FOV 54.8°, Diagonal FOV 128.2°
  • 4mm: Horizontal FOV 90.0°, Vertical FOV 45.8°, Diagonal FOV 109.4°
• Lens Mount : M16
• Aperture : F1.0
• Depth of field :
  • 2.8mm: 3.3m to ∞
  • 4mm: 3.8m to ∞


• Relief:
• Additional Lighting : IR
• Range of Supplementary Lighting : Up to 30m
• Smart Supplementary Lighting : Yes
• IR Wavelength : 850nm

  Video:


• Main Stream : Up to 25 fps at 3840×2160 (50 Hz) or 30 fps at 3200×1800, 2688×1520, etc. (60 Hz)
• Substream : 25 fps at 1280 × 720 (50 Hz) or 30 fps (60 Hz)
• Video Compression : H.265/H.264/H.264+/H.265+ for main stream, H.265/H.264/MJPEG for substream
• Bitrate Control : CBR, VBR
• Region of Interest (ROI) : 1 fixed region for main and sub stream

  Audio:


• Audio compression : G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio bitrate : From 16 Kbps to 320 Kbps (depending on the codec)
• Audio Type : Mono Sound
• Built-in Microphone : Yes
• Ambient noise filtering : Yes

  Network & Security:


• Protocols : TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, NTP, SNMP, SSL/TLS, etc.
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (ONVIF), ISAPI, SDK
• Security Features : Password protection, HTTPS encryption, IP address filtering, 802.1X authentication, etc.

  Storage:


• Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Built-in Storage : MicroSD/SDHC/SDXC, up to 512GB
• Event Storage : Upload to FTP, NAS or memory card

  Events & Analysis:


• Basic Event : Motion detection, video damage alarm, exception events
• Smart Event : Scene change detection, deep learning functions (Face recognition, Perimeter protection)
• Perimeter Protection : Line Crossing, Intrusion, Regional Entry or Exit

  Energy & Physical:


• Power supply : 12 VDC ± 25%, PoE (IEEE 802.3af, Class 3)
• Material : Aluminum alloy for base and cover
• Weight : Approximately 525g (1.2 lb.) without packaging, 750g (1.7 lb.) with packaging
• Operating Conditions : -30°C to 60°C, Humidity 95% (non-condensing)

  General Features:


• Heartbeat : Yes
• Anti-banding : Yes
• Password Reset via Email : Yes
• Pixel Counter : Yes
