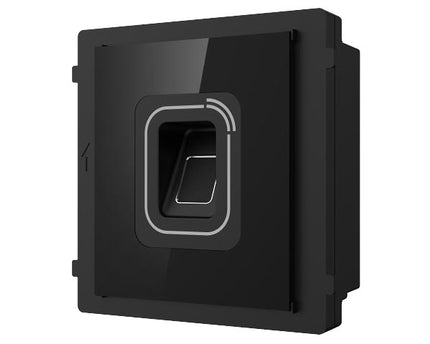

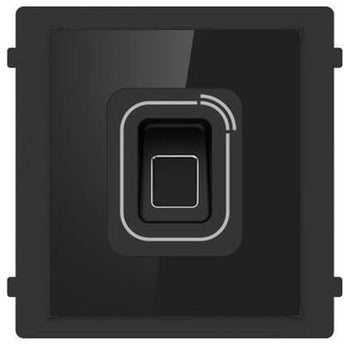

Hikvision DS-KD-MFB, fingerprint and card reader module

Product form
In stock — ready to ship
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. Estimated delivery to Germany and Austria is 1–4 business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery: 1–4 business days

€198,62€164,15 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    check Associated products for Hikvision DS-KD-MFB, fingerprint and card reader module

    Barcode: 6942160464046

    Size chart

    HikVision Video Intercom module, Submodule fingerprint and card reader M1, Desfire card, powered via main module, mounting accessories not included.

    To be installed with accessories (not included) in or surface mounted , powered via main module, RS485 communication, IP65

    Specifications:

    • Capacity
    • Fingerprint capacity - 1000
    • Card capacity - 6000

      Authentication
    • Card reading frequency - 13.56 MHz
    • Card reading distance - 2 cm
    • Card type M1, Desfire card

      Device interfaces
    • DIP switch - 8 bits
    • RS-485 - 1

      General
    • Installation - Flush mounting, surface mounting
    • Protective level - IP65
    • Working temperature - -30 °C to 60 °C
    • Working humidity - 10% to 90% (no-condensing)

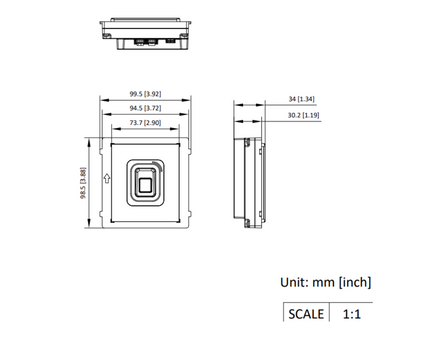

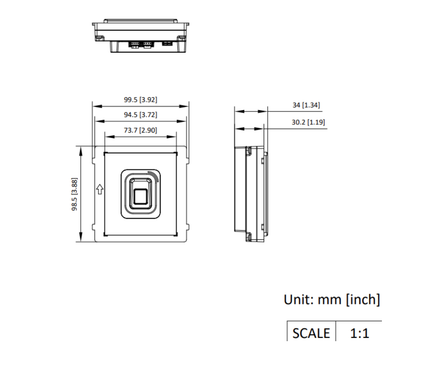

    • Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
    • Power supply - 12 VDC, supplied by the main module
    • Power consumption - ≤ 4 W
