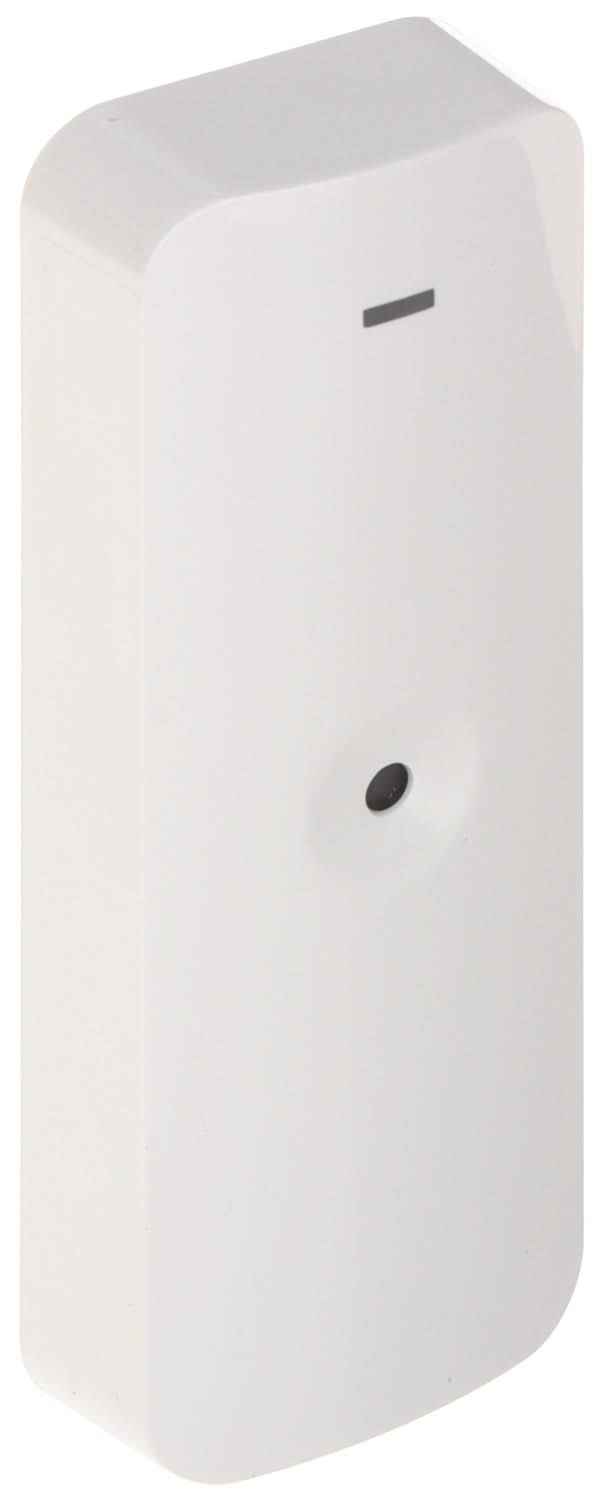

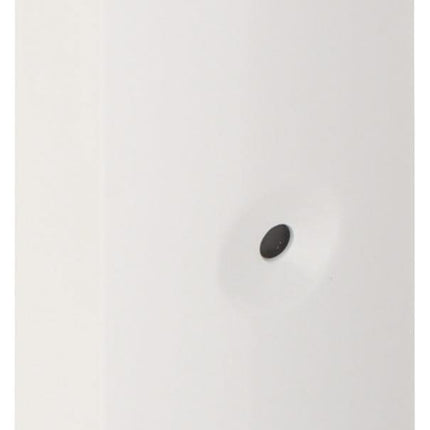

Hikvision DS-PDBG8-EG2, wired glass breakage detector

Product form
In stock — ready to ship
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. Estimated delivery to Germany and Austria is 1–4 business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery: 1–4 business days

€38,12€31,50 -16% -16%
€32,11€26,54 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    Barcode: 6941264082187

    Size chart

    DS-PDBG8-EG2, wired glass breakage detector

    • High performance omnidirectional microphone sensor
    • Up to 8 m/120° detection range
    • Selectable EOL resistors: Alarm resistor: 1K, 2K2, 4K7, 5K6, 6K8/)
    • 9-16 VDC wide voltage adjustment with reverse polarity protection

    Technical specifications:

    Detectie Prestaties

    • Detection Method Acoustic sensor
    • Detectiebereik 8m
    • Detectiehoek 120°
    • Glass Break Sensitivity Potentiometer Adjustment
    • Type of glass Float; Plate; Knotted; Wired; Laminated Lead; Double Glazing
    • Glass thickness 2.4 mm to 6.4 mm
    • Glass size 0.3mx 0.3m to 3m x 3m

    Fitted with

    • Ondersteuning bij digitale verwerking
    • Sabotagebeveiliging voorzijde

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator Red (high-frequency trigger), green (low-frequency trigger), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Voeding 9-16 VDC
    • Typische spanning 12V
    • Stroomverbruik 25mA

    Algemeen

    • Operating temperature -10°C to 55°C (14°F to 131°F)
    • Storage temperature -20°C to 60°C (-4°F to 140°F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 38.8 mm × 107 mm × 22.5 mm
    • 49,5 g
    • Montagemethode Muur;Plafond
    • Toepassingsscenario Binnen
