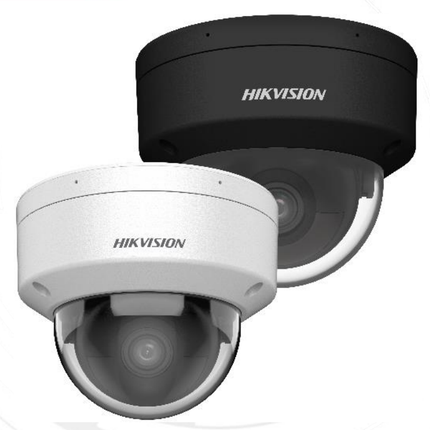

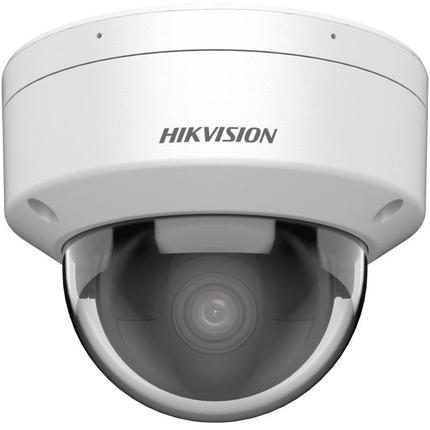

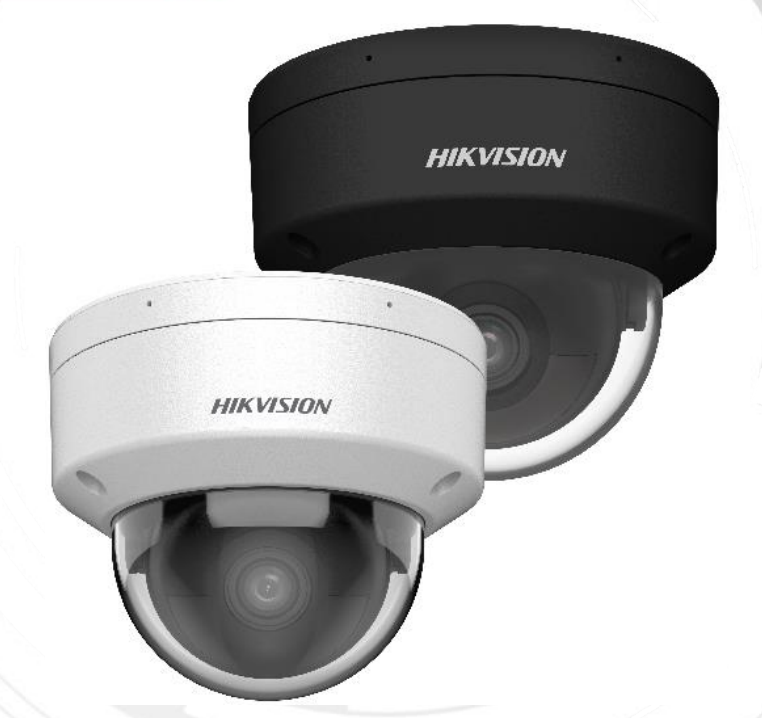

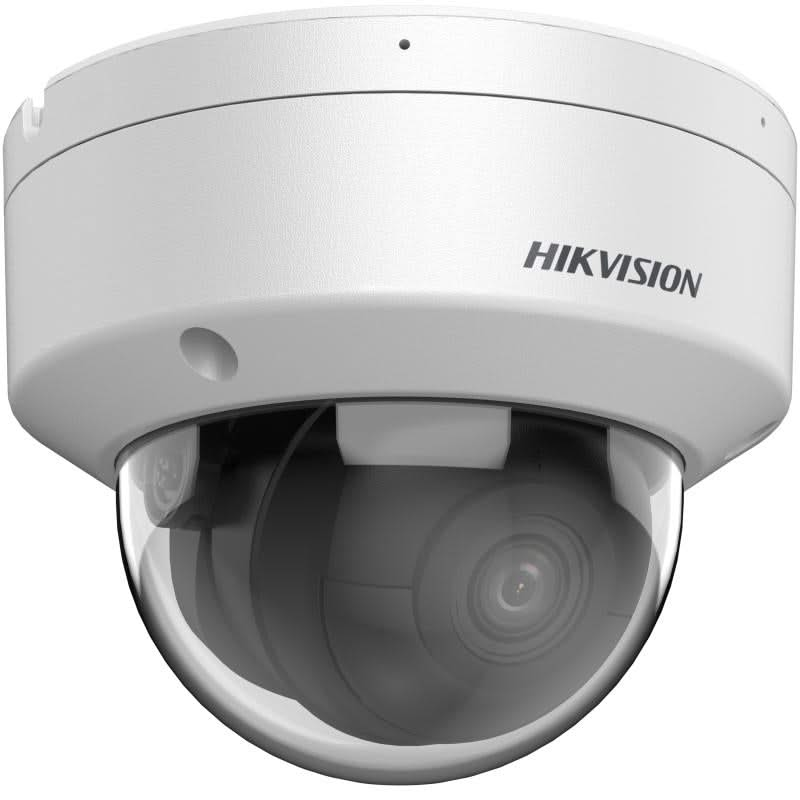

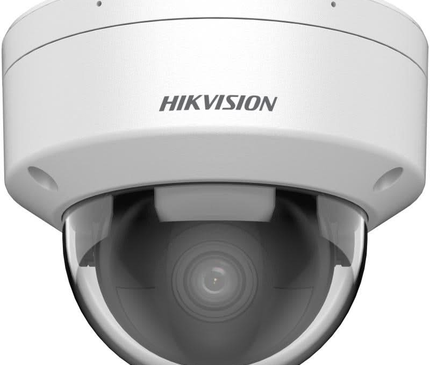

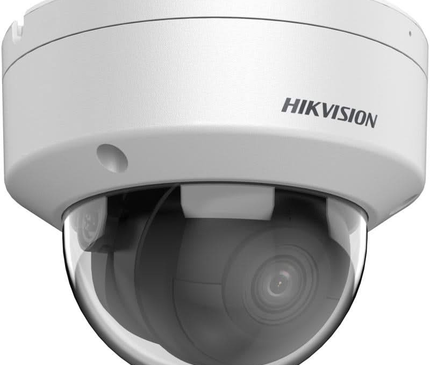

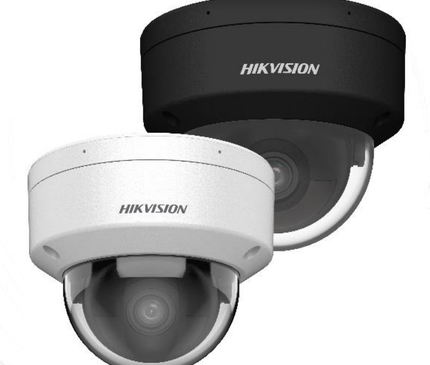

Hikvision DS-2CD2186G2H-ISU 8MP/4K DarkFighter AcuSense Dome Camera, PoE, Microphone

DS-2CD2186G2H-ISU 8MP/4K DarkFighter AcuSense Dome Camera, PoE, Microphone

Using advanced deep learning algorithms, Hikvision's AcuSense technology introduces classification alarms for human and vehicle targets on both front- and back-end devices. This system specifically emphasizes human and vehicle target identification, significantly improving alarm efficiency and effectiveness.

The DS-2CD2186G2H-ISU features a high-quality camera with 8 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Also, the DS-2CD2186G2H-ISU has Clear image in strong backlight thanks to 120 dB True WDR technology.

The Hikvision DS-2CD2186G2H-ISU Has a good focus on classification of human and vehicle targets. The Hikvision camera also features a microphone for real-time automatic security (-SU).

The Hikvision DS-2CD2186G2H-ISU is water and dust resistant (IP67) and vandal resistant (IK10).

Specifications:

Camera Features:

• Image sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160 (4K)
• Minimum Illumination: Color: 0.0008 Lux, Black/White: 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: IR filter
• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°


• Lens:


• Lens Type: Fixed focal length (choice between 2.8mm and 4mm)
• Focal Length & Field of View (FOV):
  • 2.8mm: Horizontal FOV 105.1°, Vertical FOV 54.8°, Diagonal FOV 128.2°
  • 4mm: Horizontal FOV 90.0°, Vertical FOV 45.8°, Diagonal FOV 109.4°
• Lens mount: M16
• Aperture: F1.0
• Depth of field:
  • 2.8mm: 3.3m to ∞


• Illumination:
• Supplementary Illumination: IR
• Range of Supplemental Illumination: Up to 30m
• Smart Supplemental Illumination: Yes
• IR Wavelength: 850nm

  Video:


• Main Stream: Up to 25 fps at 3840 × 2160 (50 Hz) or 30 fps at 3200 × 1800, 2688 × 1520, etc. (60 Hz)
• Substream: 25 fps at 1280 × 720 (50 Hz) or 30 fps (60 Hz)
• Video compression: H.265/H.264/H.264+/H.265+ for main stream, H.265/H.264/MJPEG for substream
• Bitrate control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main and substream

  Audio:


• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio bitrate: From 16 Kbps to 320 Kbps (depending on codec)
• Audio Type: Mono Audio
• Built-in Microphone: Yes
• Ambient Noise Filtering: Yes

  Network & Security:


• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, NTP, SNMP, SSL/TLS, etc.
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (ONVIF), ISAPI, SDK
• Security Features: Password protection, HTTPS encryption, IP address filter, 802.1X authentication, etc.

  Storage:


• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Built-in Storage: MicroSD/SDHC/SDXC, up to 512 GB
• Event Storage: Upload to FTP, NAS or memory card

  Events & Analysis:


• Basic Event: Motion detection, video damage alarm, exception events
• Smart Event: Scene change detection, deep learning functions (Face Recognition, Perimeter Protection)
• Perimeter Protection: Line Crossing, Intrusion, Region Entry or Exit

  Energy & Physical:


• Power Supply: 12 VDC ± 25%, PoE (IEEE 802.3af, Class 3)
• Material: Aluminum alloy for base and cover
• Weight: Approximately 525g (1.2 lb.) without packaging, 750g (1.7 lb.) with packaging
• Operating conditions: -30°C to 60°C, Humidity 95% (non-condensing)

  General Features:


• Heartbeat: Yes
• Anti-banding: Yes
• Password Reset via E-mail: Yes
• Pixel Counter: Yes
