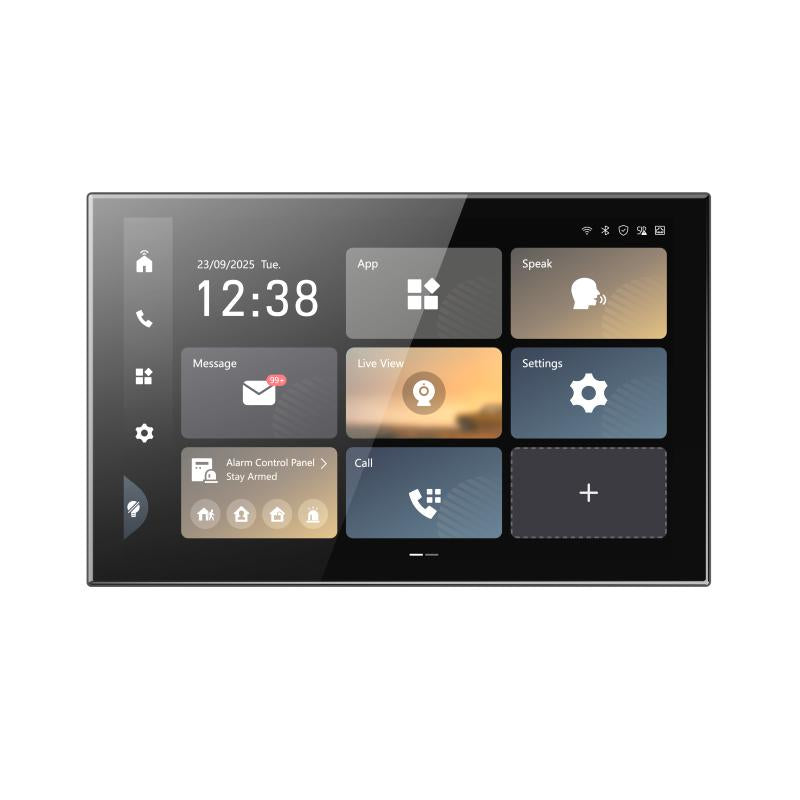

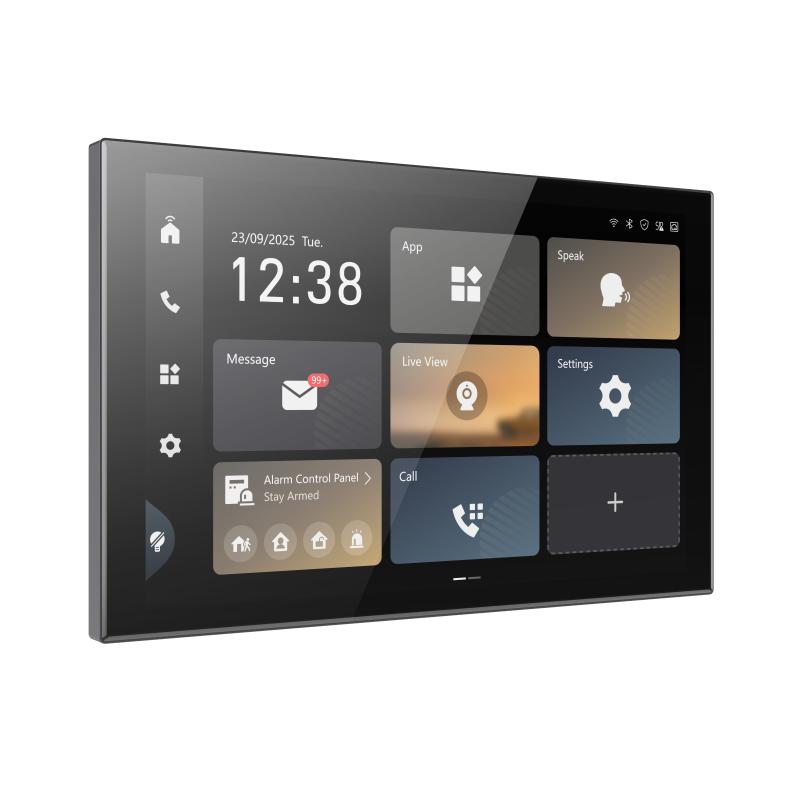

Hikvision DS-KH9570-WTE1/S, Ultra Series 10" Intercom Monitor

The Hikvision DS-KH9570-WTE1/S is an advanced 10.1-inch indoor touchscreen designed specifically for modern video intercom and security systems. Combining powerful performance with intuitive operation, this stylish indoor station is the central control point for access control and camera surveillance.

Thanks to the bright IPS touchscreen with 1920×1200 resolution, you will enjoy sharp and detailed images, ideal for viewing live camera feeds and communicating with visitors. The system runs on Android 14 and is powered by a powerful processor with 4GB of RAM, ensuring a fast and smooth user experience.

With support for WiFi 6 and PoE (Power over Ethernet), installation is flexible and future-proof. The integrated microphones and speakers with noise reduction and echo-canceling provide clear two-way audio, so you can always communicate clearly with visitors at the door.

The DS-KH9570-WTE1/S easily interfaces with Hikvision door stations and IP cameras, allowing you to centrally manage multiple entrances and security areas. This makes the system ideal for both residential and business environments where security and ease of use are key.

Specifications:

Operating system: Android 14
- Processor: quad-core
- RAM: 4 GB
- Storage: 8 GB

- Screen: 10.1-inch IPS touchscreen
- Resolution: 1920 × 1200

- Microphone: 2× omnidirectional (built-in)
- Speaker: 2× built-in
- Audio codecs: G.711, G.722.1, G726, Opus, AAC
- Features: noise reduction and echo canceling

- Ethernet: 1× RJ45 (10/100 Mbps)
- WiFi: WiFi 6 (2.4 & 5 GHz)
- Bluetooth: BLE 5.0
- Protocols: SIP, RTSP, HTTP(S), ONVIF, TCP/IP, DHCP

- Support for:
- Up to 17 door stations
- Up to 15 indoor extensions
- Up to 16 IP cameras

- Internal memory:
- 200 photos
- 200 alarms
- 200 unlocks
- 200 tamper events

- Alarm inputs: 8
- RS-485: 1× (half duplex)
- Relays: 1× (max. 30V DC / 1A)
- TF card support: up to 256 GB
- Power input: 12V DC
- Power output: 12V DC / 200 mA

- Power supply: 12V DC or PoE (IEEE 802.3at)
- Power consumption: up to 24 W

- Mounting: surface mount (surface mount)
- Use: indoors
- Temperature: -10°C to +50°C
- Humidity: 10% - 90% (non-condensing)

- Dimensions: 246.6 × 155.8 × 23.6 mm
- Weight: approximately 545 g
- Proximity sensor: yes (detection to ±50 cm)
