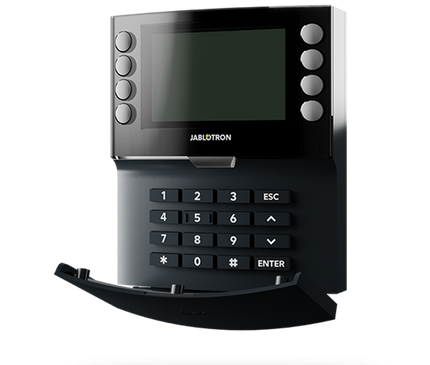

    JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

    The keypad is a component of the JABLOTRON system. It
    serves for controlling and indicating the current system status.
    It is equipped with four segments. Its descriptions are
    displayed on the LCD. The device must be
    installed by a trained technician with a valid certificate
    issued by an authorised distributor. The keyboard
    is compatible with the following control panels JA-102K, JA-103K and
    JA-107K.

    Specificaties:

    Type of operating device B
    Power supply of control panel bus 12 V DC (8-15 V)
    Current consumption in standby mode 18 mA
    Current consumption for cable selection 150 mA
    RFID frequency 125 kHz
    Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
    Afmetingen 110 x 136 x 33 mm
    Gewicht 285 g
    Classificatie Security class 2/Environmental class II according to EN 50131-1
    General environment Algemeen
    Operating temperature range -10 °C to +40 °C
    Average operating humidity 75% RH, non-condensing
    Certification body Trezor Test s.r.o. (No. 3025)
    In accordance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
    Can be operated according to ERC REC 70-03
    Recommended screw 4 x ø 3.5 x 40 mm (hemispherical head)
