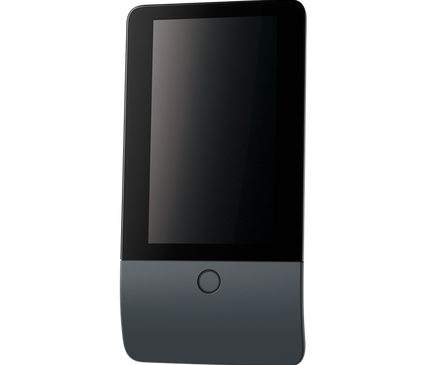

Jablotron JA-156E-AN, Touchscreen with RFID tag reader, semi-wireless, anthracite

The Jablotron JA-156E is a modern wireless touchscreen control panel for the Jablotron 100+ alarm system. With its stylish design and intuitive LCD touch display, this control panel provides easy and quick operation of the security system in homes and commercial premises.

The panel features an integrated RFID reader, allowing users to operate the alarm system not only via the touch screen, but also contactlessly with RFID tags or cards. This allows users to easily arm and disarm the system or check statuses.

The JA-156E communicates wirelessly with the control panel via the reliable 868 MHz Jablotron radio frequency, ensuring a stable connection and a flexible installation process. The control panel is powered via an external 12V adapter and can be equipped with an internal backup battery for added reliability in the event of a power failure.

With its slim design and different color options (white, gray and anthracite), the JA-156E fits perfectly into modern interiors. The panel clearly displays system status and makes daily operation of the alarm system clear and user-friendly.

Specifications:

• Power supply: External power source from adapter +12 VDC (8 - 15 V)
• Backup battery: Li-Ion polymer battery
• Voltage/capacity: 3.7 V/2500 mAh, recommended type BAT-3V7-2500
• Max. capacity: 2520 mAh
• Min. capacity: "2500 mAh
• Typical backup battery life: >48 hours
• Low battery condition: 3.5V
• Max. charging time to reach 80% capacity: 6-7 hours
• Rated current consumption (display off): 58 mA
• Max. current draw (display on): 280 mA
• Communication range: Approx. 200 m (open area)
• RFID frequency: 125 kHz
• Classification: Safety class 2/Environmental class I (according to EN 50131-1)
• Operating temperature: 0 to +40 °C

• Can be operated according to: ERC REC 70-03
• Color: Anthracite
• Dimensions: 95 x 183 x 30 mm
