With advanced detection technology, the NVS8-8MD4 is able to distinguish people and cars from other objects, so you receive notifications that really matter. Reliable and free!
The sparkling 4K Ultra HD (3840*2160) camera is designed to deliver insanely flawless video with stunning clarity and super-fine sharpness. It streams and records everything in 4K, which adds an extra layer of protection through more visible detail and rich colors. When you watch videos on Reolink App/Client, it feels like you are watching on the spot.
Each camera in the functional kit is equipped with 18 pieces of infrared LEDs, which allows it to detect activity up to 100 feet in the dark. It captures critical evidence, even in low light, and monitors your property from day to night.
Thanks to Power over Ethernet (PoE) technology, each camera in this security system can transmit video and be charged at the same time via just a network cable. You can install these cameras quickly and neatly.
With a pre-installed 2TB HDD and storage capacity of up to 12TB, this 4K security camera system supports all cameras to record continuously at the same time. You'll have video all day long without missing a beat.
The sturdy and stylish cameras in this kit feature an IP67 weatherproof rating . They are designed for indoor and outdoor use and can withstand all extreme weather conditions. You can mount the camera anywhere you want.
Specifications:

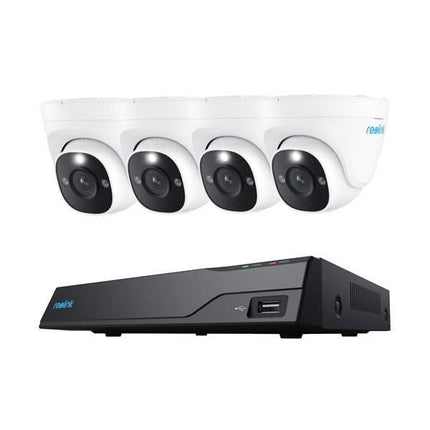

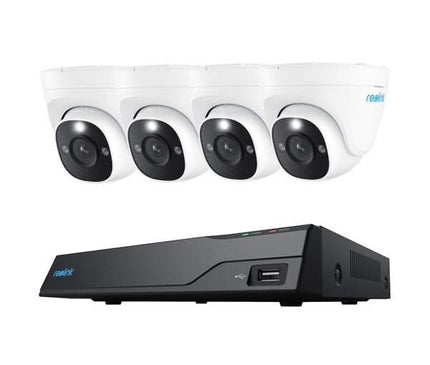

| Model: Reolink NVS8-8MD4 |

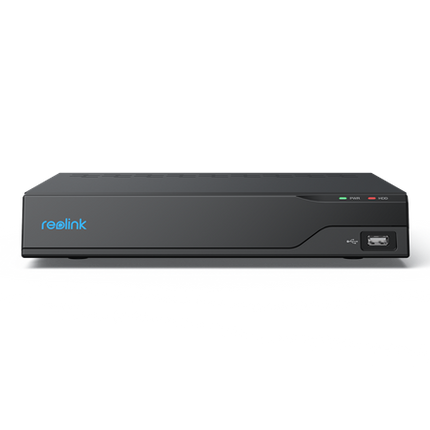

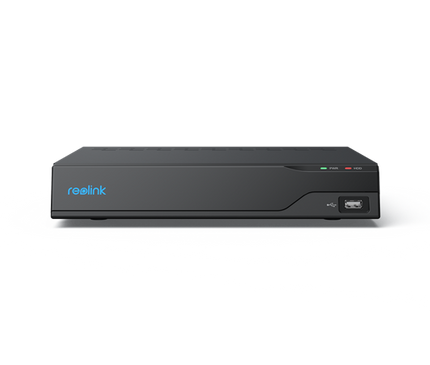

| Model | Model NVR | NVS8 |
| Product Name | 8-channel 12MP PoE NVR |

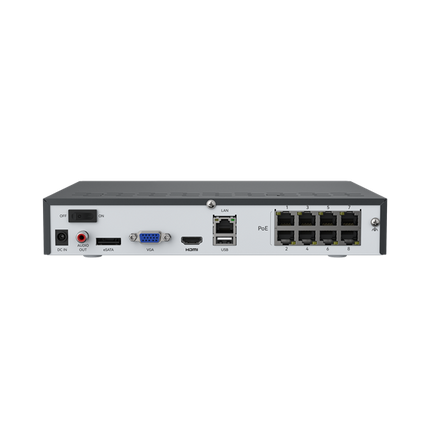

| External Interface | Video out | 1 VGA, 1 HDMI |
| Audio port | 1 audio out channel, RCA |
| USB ports | 2x USB 2.0 |
| Ethernet ports | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras |
| Video / Audio output | Video input | PoE IP camera x 8 |
| Video output | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio input | Cameras with built-in microphone |
Recording
| Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video Compression | H.265, H.264 |
| Synchronous Playback | 1-4 channels (supports 1-channel playback when viewing in resolution of 8MP or higher) |
| Recording modes | Person detection, vehicle detection, pet detection, motion-activated detection, 24/7 |
| Storage | Internal HDD | 1 SATA interface (1x 2TB HDD pre-installed) |
| Capacity | Up to 12TB (max 6TB for each HDD) |
| External HD | 1 eSATA interface for HDD |
| PoE | Max power per port | 25W |
| Standard | IEEE 802.3af/at |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser | Edge, Firefox, Chrome, Safari |
| OS | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max users. | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams) |
General
| Working environment | Temperature: -10C~+45C, Humidity: 10%~90% |
| Current | DC 48~53V |
| Power Consumption | <10W (without HDD&PoE) |
| Dimension(mm) | 260 x 41 x 230 |
| Weight (without HDD) | 1.4 kg |
| Warranty | 2 years |

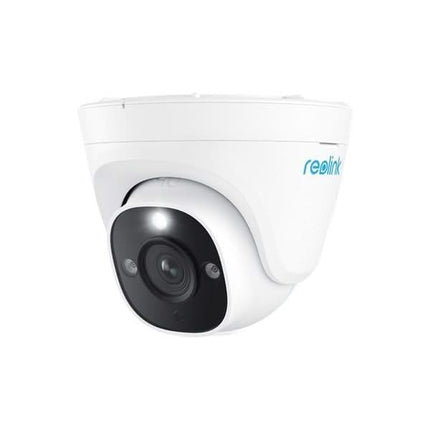

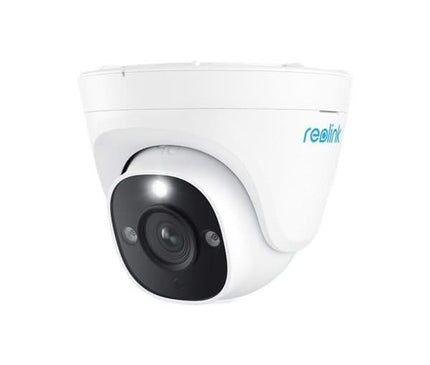

| Camera model: Reolink P334 |
| Video & Audio | Sensor | 1/2.49" CMOS Sensor |
| Resolution | 3840 x 2160 (8 Megapixel) @25 frames/sec |
| Lens | f=2.8mm fixed; F=1.6 with IR cut |
| Viewing Angle | Horizontal: 105°, Vertical: 56° |
| Day/night mode | Auto-switching IR cut filter |
| Night vision | 30 Meter (LED: 2pcs/1.8W/850nm) |
| Spotlight | 1st/4.3W/6500K/700lum |
| Audio | Built-in microphone |
| Video format | H.265 |
Power supply
| PoE | IEEE 802.3af, 48V |
| Power | DC 12.0V-1A, <12W |
Interface
| Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card (up to 256GB) |
| System | Reset button |
| Power | DC power port |
Software
| Frame rate | Mainstream: 2fps - 25fps (default: 25fps)
Substream: 4fps - 15fps (default: 10fps) |
| Code rate | Main Stream: 2048Kbps -8192Kbps(default: 6144Kbps)
Sub Stream: 64Kbps - 512Kbps(default: 256Kbps) |
| Network Protocol | HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Browser Support | IE, Edge, Chrome, Firefox, Safari |
| OS Support | PC: Windows, Mac OS; Smart Phone: iOS, Android |
| Users | 20 users (1 admin account & 19 user accounts); Supports up to 12 video streams simultaneously (10 sub-streams & 2 mainstreams) |
| Recording mode | Motion detection recording (default), scheduled recording |
| Smart Alarm | Motion, person, vehicle and pet detection |
| Works with | Google Assistant, Reolink NVR |
| General | Working Environment | Operating temperature -10° ~ 55° C;
Operating humidity 10%~90% |
| Waterproof | IP66 |
| Dimension | ∅117.4x103.8mm |
| Weight | 526g |
