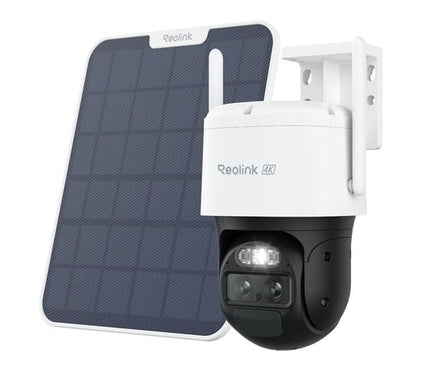

This 4K/8MP dual-lens, dual-view battery-powered camera provides remote access to your business via 4G LTE when there’s no internet connection nearby. With a long-lasting battery and a Reolink Solar Panel 2, you can continuously monitor your business or business premises. The G770 combines wide-angle and telephoto lenses and displays both views on a single screen. The close-up view uses 6x hybrid zoom and PT capabilities to track and focus on targets. Thanks to the solar panel, you’ll rarely need to charge this model.
- 8MP Ultra HD resolution for detailed images and videos;
- 360° coverage. The camera can rotate 355° and tilt 90°, providing a wide range of coverage;
- At night, you can turn on the spotlight for bright color images or use the IR LEDs for black-and-white monitoring up to 30 meters in the dark (the spotlight can be turned off manually);
- Intelligent person, vehicle, and animal detection with accurate notifications;
- PIR detection; define and customize motion zones as desired;
- The G770 features a long-lasting, rechargeable battery but also works with a Reolink solar panel (not included) for continuous power;
- Supports local storage on a microSD card up to 128GB. Or use Reolink Cloud or an FTP server;
- Operates on the 4G LTE cellular network with a nano SIM card (not included). Can be used anywhere, perfect for areas without Wi-Fi coverage or electricity;
- Ideal solution for video surveillance—no hassle, no wiring;
- Two-way audio, built-in microphone and speaker;
- Dual lens, dual view, 6x hybrid zoom;
- Can be used in all weather conditions; the camera is IP65 weatherproof;
- Features a time-lapse video function;
- Thanks to compatibility with Smart Home devices such as Google Assistant, you have instant access to the camera’s live feed via a simple voice command;
- Total control, anywhere and anytime. With real-time notifications, view footage wherever and whenever you want, customizable detection zones, and smart playback in the free app (iOS and Android) on your smartphone or tablet.
Specifications:
• Model: Reolink G770-W
• Video &
Audio• Sensor: 1/3" CMOS
Sensor• Video Resolution: Up to 3840 × 2160 (8MP) @ 15
frames/sec• Lens: f=2.8mm @ F1.6, f=8mm @ F1.6•
Video Format: H.264, H.
265• Field of View:
• f=2.8mm: Horizontal 108°, Vertical 57.3°•
f=8mm: Horizontal 38°, Vertical 21.2°•
Day & Night: IR-cut filter with
auto-switching• IR Night Vision: Up to 30 meters (2 LEDs / 850 lm)
• Color night vision: 1 spotlight / 6500K / 450 lm•
Zoom: 6× hybrid zoom•
Audio: 2-way audio
• Software
features• Frame rate:
• Mainstream: 10 fps – 15 fps•
Substream: 10 fps – 15
fps• Code rate:
• Mainstream: 1024 Kbps – 4096
Kbps• Substream: 64 Kbps – 512
Kbps• OS: PC (Windows, Mac OS); Smartphone (iOS, Android)
• Smart Alarms: PIR detection, human detection, vehicle detection, animal detection•
Protocols: SSL, TCP/IP, UDP, UPnP, SMTP, NTP,
P2P• Max users: Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
• Works with: Google Assistant, Reolink Cloud•
Recording: Motion-activated recording
• 3G & 4G
bandwidth• Frequency bands (Europe):
• LTE FDD: B1 / B3 / B7 / B8 / B20 /
B28A• WCDMA: B1 /
B8• Data transmission:
• LTE FDD: Max 10 Mbps (DL), Max 5 Mbps (UL)
• LTE TDD: Max 8.96 Mbps (DL), Max 3.1 Mbps (UL)
• HSPA+: Max 42 Mbps (DL), Max 5.76 Mbps (UL)
• UMTS: Max 384 Kbps (DL), Max 384 Kbps (UL)
•
Power• Battery: 7.2V 5100mAh rechargeable battery (lifespan depends on settings, usage, and temperature), 36.72 Wh•
Solar panel: Reolink Solar Panel 2 USB-C (optional)
• DC power: 5V / 2A
•
Interface• Power: USB Type-C
port• System: Reset button•
Local storage: Micro SD card slot (up to 128GB)
• Network: Nano SIM card slot•
Audio: Built-in microphone & speaker
• Pan &
Tilt• Pan & Tilt: Pan 355°, Tilt 0° ~ 90° (adjustable speed)
• Presets:
32• Auto Tracking: Supported
•
Operating Environment• Operating Temperature: -10° ~ 55° C•
Operating Humidity: 20% ~
85%• Weatherproof: IP65
• Dimensions &
Weight• Dimensions: 228.2 × 147 × 129 mm•
Weight: 1.4 kg
