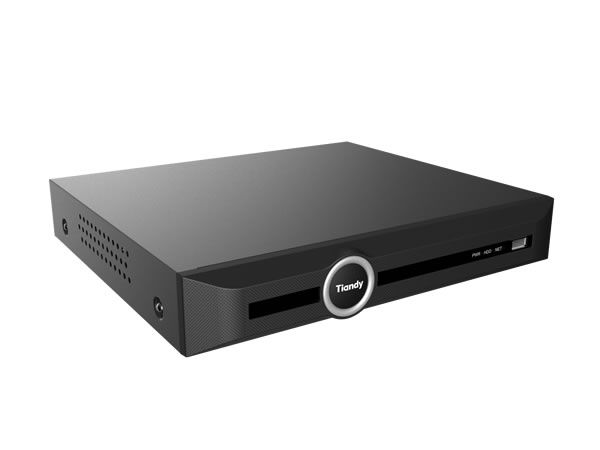

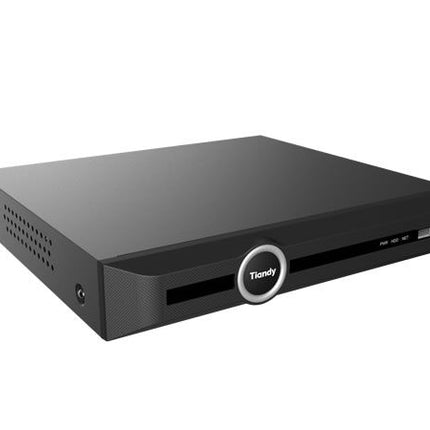

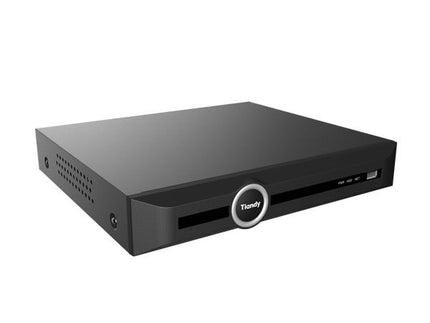

TC-R3110-8KV31, Network Video Recorder, HDMI, 8x PoE, Max 8MP

The Tiandy TC-R3110_IBP8KV31 is a powerful and reliable Network Video Recorder (NVR) designed for professional IP camera security systems. Suitable for medium to larger installations, this NVR combines high performance with easy management. The 8 integrated PoE ports allow IP cameras to be directly connected and powered without the need for an additional PoE switch. This ensures fast, convenient and cost-effective installation.

The recorder supports high camera resolutions of up to 8 MP, capturing sharp and detailed images. Combined with modern video compression technologies, the TC-R3110_IBP8KV31 provides an efficient storage solution, ideal for situations where images need to be stored for longer periods of time.

Specifications:

• Supports up to 10 IP cameras (10-channel NVR)

• Supports camera resolutions up to 8 MP

• Video compression: S+265, H.265, S+264 and H.264

• Features 8 integrated PoE ports (10/100 Mbps) for power and data over a single cable

• Total PoE power approximately 70 W, maximum 30 W per PoE port

• 1 HDMI output with support for up to 4K resolution (3840 × 2160)

• 1 VGA output for monitor display

• 1 RJ45 network port (10/100 Mbps)

• Supports 1 internal SATA hard drive up to 10 TB (HDD not included)

• 2 USB 2.0 ports for mouse and backup

• Alarm I/O: 4 alarm inputs and 1 alarm output

• Audio: 1 audio input and 1 audio output

• Support for simultaneous live playback, recording and playback

• Multi-screen playback with different screen layouts

• ONVIF and RTSP compatible for connection of third-party IP cameras

• Support for smart functions and VCA detection (camera dependent)

• Maximum incoming and outgoing bandwidth approximately 80 Mbps

• Power supply: DC 48 V

• Operating temperature from -10 °C to +55 °C

• Humidity: 10% to 90% RH

• Dimensions approximately 255 × 231 × 45 mm

• Weight approximately 1 kg (without hard drive)
