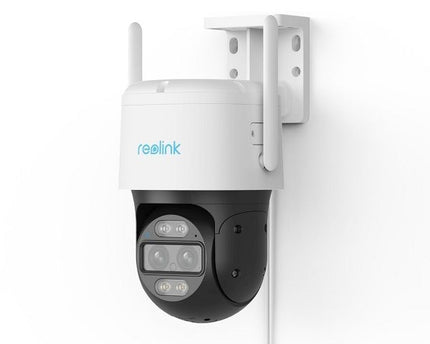

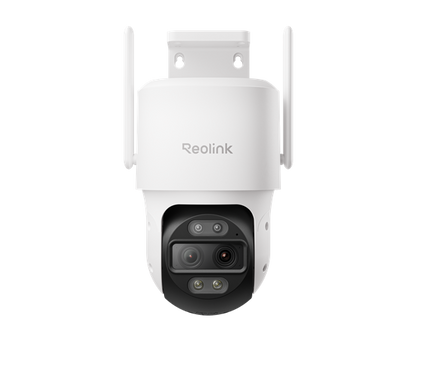

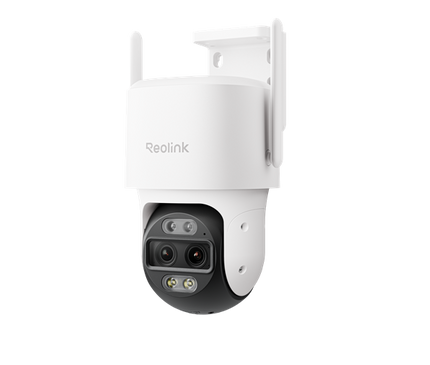

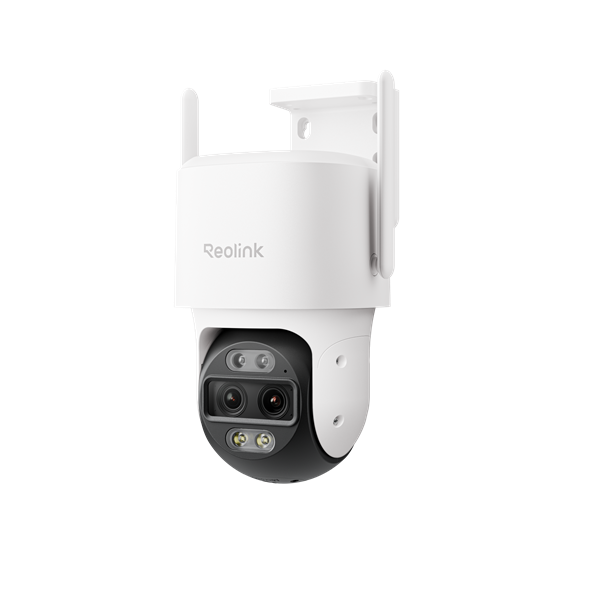

Reolink W760-A-W Dual Lens 4K WiFi PTZ Camera (Powered)
Are you ready to embrace the latest technology and enjoy seamless 24/7 surveillance? Look no further than the Reolink W760 Dual Lens WiFi. This intelligent PTZ camera takes your security to the next level and delivers unmatched image quality, continuous recording, and remote access via a lightning-fast, free app!
Key Features:
Discover a whole new way to track with the Reolink TrackMix Series W760. This camera can automatically track a detected target and zoom in for more details, thanks to its pan-and-tilt capabilities and 6x hybrid zoom. Equipped with both a wide-angle and a telephoto lens, the W760 displays both wide-angle and close-up views of the same event on a single screen. Go beyond Full HD and experience unmatched detail with this 4K camera.
Dual-Lens, Dual-Tracking, Dual View.
Dual-Lens: The dual-lens camera simultaneously captures both wide-angle and close-up images of the same event and displays them on the same screen;
Dual-tracking: Dual-tracking refers to the two methods a TrackMix camera uses simultaneously to automatically track an object using pan and tilt movements (up to 355°H, 90°V) in both the panoramic and zoomed-in views;
- Dual View: You can see both views (panoramic and zoomed-in) on a single screen;
- 4K 8MP Ultra HD resolution, for images with incredible detail
- Smart detection and two-way audio. The W760 can distinguish people and vehicles from other objects, resulting in more accurate notifications. Plus, you can talk and listen through the built-in microphone and speaker

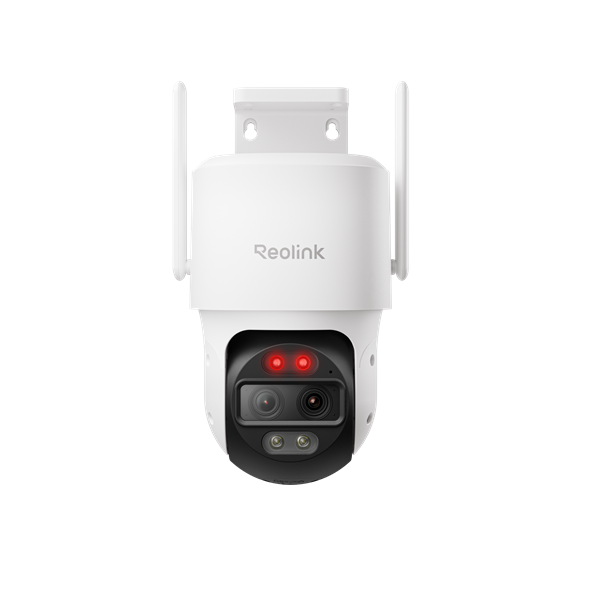

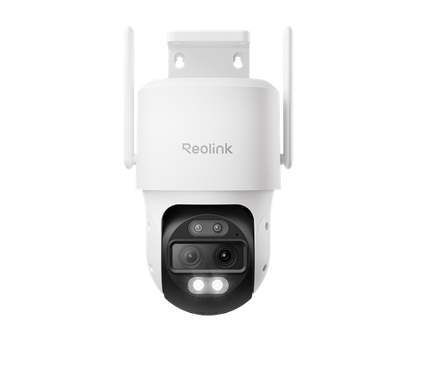

Night vision, 2 spotlights, 2 IR LEDs. When the spotlights are on, the W760 provides full-color night vision. But even without light, you can still capture high-quality video thanks to the infrared LEDs. So you can choose whether you want infrared light or bright white light (dimmable).
- Dual-Band Wi-Fi, 2T2R MIMO antennas. The Reolink W760 supports both 2.4 GHz and 5 GHz (5.8 GHz) frequencies for a stronger signal and a smoother live feed. Flexible options, easy to set up
- This camera supports time-lapse video recording*
- The W760 is weatherproof. Its rugged housing ensures the camera is waterproof. It works perfectly in all weather conditions
- Various storage options. Supports 24/7 continuous recording, motion-activated recording, or scheduled recording. Videos can be saved to a microSD card, a Reolink NVR, or an FTP server
- View the footage wherever and whenever you want in the free Reolink app (iOS and Android) on your smartphone or tablet, or view it via the free Reolink Client on your PC
- Works with Google Assistant
Say goodbye to false alarms. Advanced AI-based motion detection filters out irrelevant activity and alerts you only when there’s a real security issue.
Access your camera feeds from anywhere via the intuitive Reolink app on your smartphone or tablet. Control PTZ functions, play back recordings, and receive instant alerts right in the palm of your hand.
The W760 is built to withstand the elements and has an IP66 rating for weather resistance. Whether it’s raining or sunny, this camera continues to perform flawlessly.
Setting up your W760 is easy with the included accessories and user-friendly interface. Your camera will be up and running in no time.
Choose your preferred storage method. Record footage locally on an SD card (up to 256 GB) or expand your storage with a Reolink NVR for added convenience.
With its sleek and modern design, the W760 integrates seamlessly into any environment, enhancing the aesthetics of your property while providing top-notch security.
Take your security to new heights with the Reolink W760. Experience the perfect blend of advanced technology, crystal-clear images, and always-on surveillance capabilities.
Choose Reolink, the trusted name in home and business security, and unlock the future of surveillance. Upgrade to the W760 today and ensure the safety and protection of your loved ones and property 24 hours a day!
Technical Specifications:
| Model: Reolink W760 (Trackmix series) |
| Video & Audio | Sensor | 1/3" + 1/2.8" CMOS Sensor |
| Video Resolution | 3840x2160 (8 megapixels) @25 frames/sec |
| Lens | f=2.8mm@F=1.6, f=8mm@F=1.6 |
| Video Format | H.264, H.265 |
| Field of view | Horizontal 104°–38°, vertical 60°–21° |
| Zoom mode | 6x Hybrid zoom |
| Day/Night | IR cut filter with auto-switching |
| IR Night Vision | Up to 15 meters (LEDs: 2 / 850 nm) |
| Color night vision | Spotlights: 2 / 6500K / 450 lumens |
| Audio | 2-way audio |
Software
| Frame rate | Mainstream: 2 fps–25 fps Substream: 4 fps–20 fps |
| Code rate | Mainstream: 4096 Kbps–8192 Kbps; Substream: 128 Kbps–1228 Kbps |
| Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection; person detection; vehicle detection |
| Recording modes | Motion-activated (default), scheduled |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Max users | 20 users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Works with | Google Assistant |
| Interface | Power | DC Power Port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |

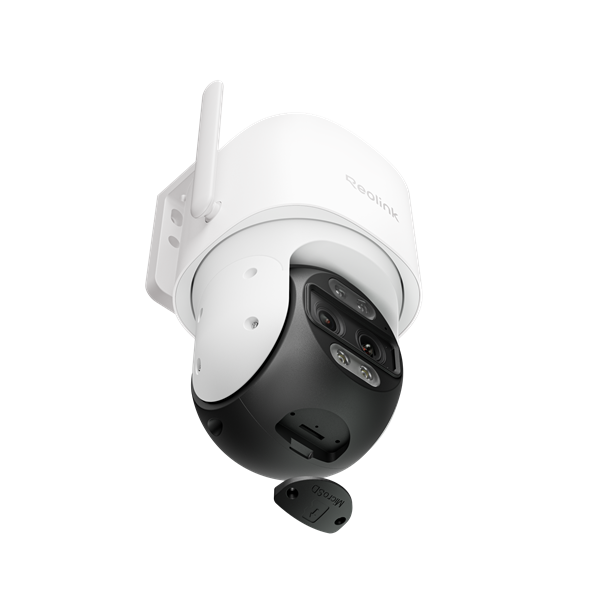

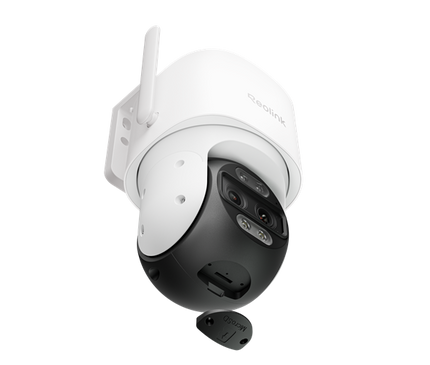

| Storage | Micro SD card slot (up to 256GB) |
| Audio | Built-in microphone and speaker |
| Pan & Tilt; | Pan & Tilt Range | Pan: 355°; Tilt: 0–90° |
| Pan speed | 2.5–90° per second (adjustable) |
| Tilt speed | 1.5–60° per second (adjustable) |
| Presets | 32 |
| Auto tracking | Support |
| Wi-Fi | Standard Wi-Fi | IEEE 802.11a/b/g/n |
| Frequency | 2.4 GHz/5 GHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
| Power | DC power | DC 12.0V = 2A, <12W |
| Operating Environment | Operating temperature | -10° to 55° C |
| Operating humidity | 10% ~ 90% |
| Waterproof | Support |
| Dimensions & Weight | Dimensions | 228 x 147 x 129 mm |
| Weight | 1.21 kg |
| Warranty | Limited | 2-year limited warranty |
