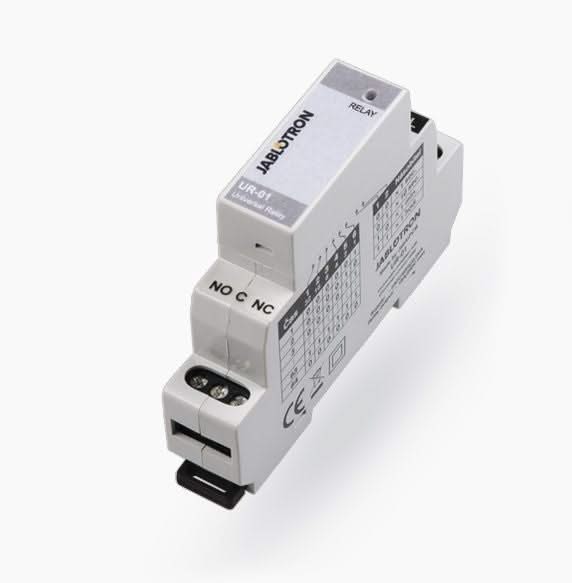

    Jablotron UR-01 Multifunction relay


    You can stow the Jablotron UR-01 Multifunction Relay in your tool bag, to help solve many tasks.

    It features switching contacts with galvanic and safety isolation for switching a load of 230VAC/16A, which can be used in one of eight selectable options. The relay is designed for mounting on a DIN rail and its characteristics are set using switches under a cover.

    It offers eight functions:
    * Switching relay - Standard NO/NC relay
    * Bistable relay - e.g. for light control from multiple locations using buttons
    * Bistable relay with time limitation - e.g. for the control of lights from multiple locations (however, the light will not be on for longer than during the set time)
    * Delayed switch-off - e.g. for the run-out of a fan
    * Delayed switch-on - starting an electric motor in star - delta mode.
    * Impulse by front flank - activation of a device for a certain time
    * Impulse by rear flank - e.g. to switch on a fan after turning off the lights
    * Regular impulses - at a fixed interval, this will activate a device for a period of 10 min - e.g. for the regular heating of a heating element in the bathroom
