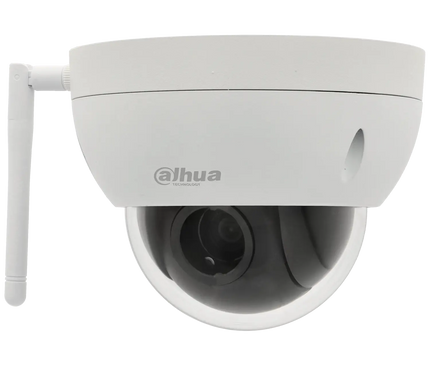

IPC-SD22404DB-GNY-W, 4 Megapixel Mini PTZ PoE Dome met WiFi
De 4 megapixel vandaalbestendige beweegbare mini Dome WiFi PTZ camera met 2.8-11mm lens, IP66 en IK10 codering en dus geschikt voor buiten. Voeding via optionele 12volt adapter. Zie gerelateerde producten voor een geschikte voeding. Onboard storage mogelijk middels een optionele micro SD card van max 256Gb.
Dit is een hele handige camera die 355 graden te draaien en naar beneden en boven gericht kan worden alsmede kan in en uitzoomen. En dat alles met een Full HD beeld. Het zoombereik is 4x optisch met een kijkhoek varierend van 30 tot 95 graden.
Deze camera is ideaal te combineren met een Netwerk Video Recorder. De camera moet worden verbonden met uw eigen WiFi netwerk.
GENERAL INFORMATION
| Serie |
Wiz Sense |
| Technology |
IP |
| Type of camera |
PTZ |
| Sensor |
Starvis Cmos ® |
| Sensor resolution |
2560 x 1440 |
| Sensor Size |
1/2.8' |
| Electronic shutter speed |
1/1s ~ 1/30,000s |
| Minimum lighting |
Color: 0.005Lux / B/W: 0.0005Lux |
| Ratio S / N |
More than 55dB |
MATERIAL AND DIMENSIONS
| Dimensions |
89 x 122 (Ø) mm |
| Material |
Metal |
| Net weight |
500 g |
| Weight with packaging |
700 g |
NIGHT VISION
| Night vision distance |
No dispone |
| Starlight |
Yes |
POWER CONSUMPTION
| Power mode |
DC |
| Voltage |
12V |
| Consumption (w) |
4.8W |
| Amperage |
1000mA |
| PoE power |
Not available |
AMBIENT
| Operating temperature |
-30 ºC ~ 60 ºC |
| Degree of protection |
IP66 |
| Anti vandal |
IK10 |
| Use |
Indoor-outdoor |
| Maximum humidity |
95% |
| Lightning protection |
6KV |
LENS
| Lens Type |
Optical zoom |
| Optical zoom |
4x |
| Focal distance |
2.8 mm ~ 12 mm |
| Maximum diaphragm opening |
F1.6 ~ F3.0 |
| Angle of View |
90.3° ~ 29.4° |
| Minimum focus distance |
1500mm |
| Autofocus |
Yes |
DISTANCE DORI
| Detect (Open lens) |
65 m |
| Detect (Closed Lens) |
200 m |
| Observe (Open lens) |
26 m |
| Observe (Closed lens) |
79 m |
| Recognize (Open lens) |
13 m |
| Recognize (Closed lens) |
40 m |
| Identify (Open lens) |
7 m |
| Identify (Closed lens) |
20 m |
VIDEO (CAMERAS)
| Video Resolution |
4 Megapixels |
| BLC |
Yes |
| HLC |
Yes |
| 3D-NR |
Yes |
| AGC |
Yes |
| AWB |
Yes |
| WDR |
DWDR |
| Images per second |
25fps |
| Video output |
RJ45 |
| Day / night mode |
Colour |
| Digital Zoom |
16x |
| Anti fog system |
Yes |
| Type of Codex |
CBR / VBR |
| Bit rate |
H.264: 2816Kbps ~ 13056Kbps / H.265: 1024Kbps ~ 7936Kbps |
| Compression |
H.265 / H.264 |
| EIS |
Yes |
| Main stream |
4Mpx / 3Mpx / 1080P / 1.3Mpx / 720P (1 ~ 25fps) |
| Sub stream |
D1 / VGA / CIF (1 ~ 25fps) |
| Sub stream 2 |
720P (1 ~ 25fps) |
PTZ
| Pan / Tilt Range |
Horizontal 355° ; Vertical 90° |
| Manual speed control |
Horizontal 100º / s / Vertical 60º / s |
| Speed between presets |
Horizontal 100º/s / Vertical 60º/s |
| Memories |
300 |
| PTZ mode |
8 Tour between established points, 5 rounds |
| Protocol |
SD Pelco-P/D |
| Idle mode |
Pattern / Preset / Tour |
WI-FI
| Wi-Fi standard |
IEEE802.11 b / g / n |
| Frequency range |
2.4 GHz |
| Speed |
150Mbps |
NETWORK FEATURES
| IP connection |
1 RJ45 (10M / 100M) |
| Wi-Fi |
Yes |
| ONVIF |
Yes, type S , G and T |
| Transmission method |
Unicast / Multicast |
| Maximum number of users |
20 users |
| Web browser |
Explorer / Chrome / Firefox / Safari |
| Management software |
DSS / DMSS |
| Mobile devices |
Android / IOS (Apple) |
| Network disconnection |
Yes |
| Conflict of IP addresses |
Yes |
VIDEO ANALYSIS
| Detection type |
Analytical with human/vehicle classification in line/area crossing |
| AI Functions |
Facial detection |
| Crossing line |
Yes |
| Intrusion |
Yes |
| Face detection |
Yes |
| Motion detection |
Yes |
| Abandoned object |
Yes |
| Missing object |
Yes |
| Video Tamper |
Yes |
| Loitering detection |
Yes |
| Classification Human / vehicle |
Yes |
| Detección de parking |
Yes |
| SMD 3.0 |
Yes |
STORAGE
| MicroSD-Card |
Hasta 512Gb |
| Storage Systems |
NAS / FTP / Micro SD |
| Storage anomaly |
Yes |
SYSTEM (CAMERAS)
| Ram memory |
512 MB |
| ROM memory |
128 MB |
