HAC-HDW1200TRQ, 2MP 2.8mm, HD-CVI, Eyeball, 25m IR

The Dahua HAC-HDW1200TRQ is a reliable 2 megapixel HDCVI surveillance camera that delivers sharp Full HD images. Designed for use in both residential and professional security installations, this camera combines good image quality with easy installation and wide compatibility.

Thanks to its 2MP CMOS sensor, the camera produces images at a resolution of 1920 × 1080 pixels. The fixed 2.8mm lens provides a wide field of view, allowing efficient monitoring of larger areas. Built-in Smart IR illumination ensures clear images in complete darkness, with a night vision range of up to approximately 25 to 30 meters.

The camera supports multiple video standards (HDCVI, AHD, TVI and CVBS), making it easy to integrate into existing CCTV systems. Image enhancement features such as DWDR, BLC, HLC and digital noise reduction ensure stable and usable images under varying lighting conditions.

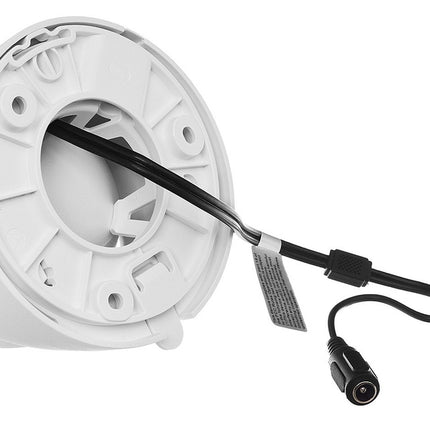

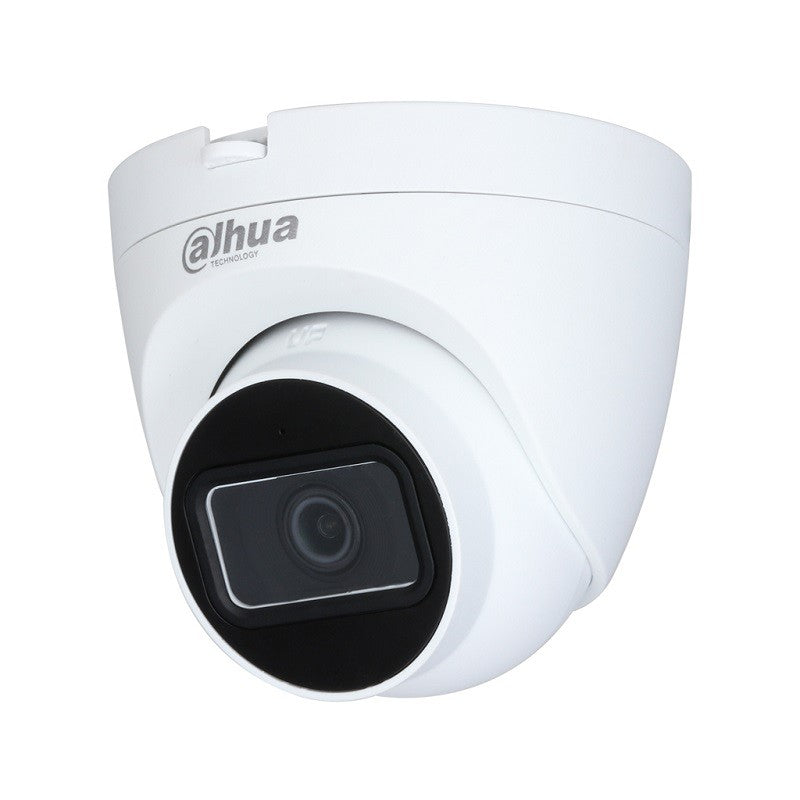

The compact eyeball housing makes wall or ceiling mounting easy. The camera is suitable for indoor use and sheltered outdoor locations and runs on a 12V DC power supply.

The Dahua HAC-HDW1200TRQ is a practical and cost-effective solution for situations where reliable Full HD video surveillance is desired, such as homes, stores, offices and warehouses.

Specifications

• Type: 2 MP HDCVI eyeball camera

• Sensor: 1/2.7″ CMOS, 2 megapixel

• Maximum Resolution: 1920 × 1080 (1080p) up to 30 fps

• Housing: Dome, plastic

• Protection rating: IP50

Image and lens

• Lens: fixed lens, 2.8 mm (optional 3.6 mm)

• Aperture: F2.0 (2.8 mm variant)

• Viewing angle: approx. H 102° (at 2.8 mm)

• Min. focus distance: ~0.5 m at 2.8 mm

Night vision and illumination

• Infrared LEDs: 2 pcs.

• Smart IR night vision up to about 25-30 m

• Day/night switching: automatic IR-cut filter

Video functions and processing

• Signal-to-noise ratio: >65 dB

• Video standards (switchable): HDCVI / AHD / TVI / CVBS

• Digital image enhancement: DWDR, BLC, HLC, 2D-NR and AGC

• Privacy masking: up to 8 zones (adjustable)

• Mirror function (image mirroring)

Outputs and controls

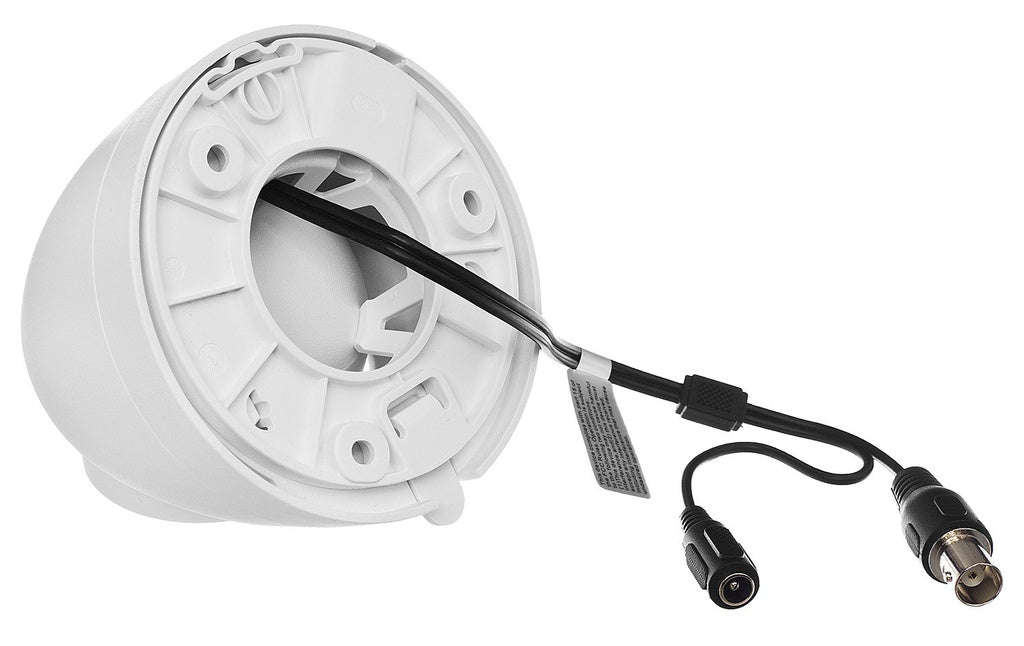

• Video output: 1 × BNC (selectable CVI/TVI/AHD/CVBS)

• OSD menu control via recorder or coax button

Power supply and consumption

• Power supply: 12 V DC ±30 %.

• Maximum power: approx. 2.6-2.7 W

Environment and construction

• Operating temperature: -40 °C to +60 °C

• Relative humidity: <95 % (without condensation)

• Dimensions: Ø 97.1 mm × 93.0 mm

• Weight (net): approx. 170 g
